PC Vibration Measurement System VibroMetra

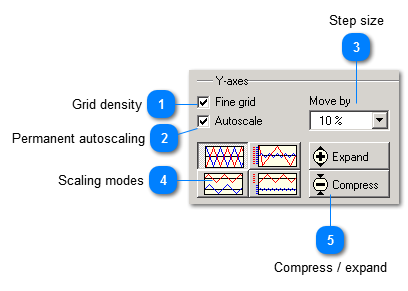

Y axis settings

Y axis settings

Grid density

1. Grid density
If you activate this checkbox, VM-PLOT will show grid lines at all graduation marks of the Y-axis.

Permanent autoscaling

2. Permanent autoscaling
Rescales the diagram after each update with the last scaling mode.

Step size

3. Step size
The step width in percent of full scale length for shifting the signal trace.

Scaling modes

4. Scaling modes
There are four scale modes:
  • All curves are maximized.
  • Same scale for all curves.
  • All curves are maximized and stacked with their own area.
  • All curves use the same scale, they are stacked with their own area.

Compress / expand

5. Compress / expand
These buttons expand or compress all traces in Y direction.
