PC Vibration Measurement System VibroMetra

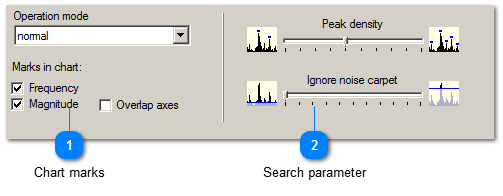

Settings in operation mode "normal"


Settings in operation mode "normal"
1

Chart marks


1. Chart marks

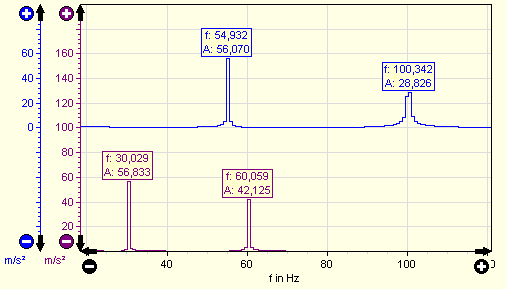

The found magnitudes can be marked in the measurement chart. You can select whether frequency and/or magnitude values are displayed numerically in the mark.
By the function Overlap axes markers are displayed in the foreground, if they are overlapped by an axis.
2

Search parameter


2. Search parameter
The search parameters define whether only the highest (and thus few) magnitudes or many magnitudes are to be found.
  • Peak density determines the number of found magnitudes. The more you move the controller to the right side, the more magnitudes will be found.
  • Ignore noise carpet determines which level is to be ignored as noise carpet during the finding of magnitudes. The more you move the controller to the right, the more is ignored and fewer magnitudes will be found.
