PC Vibration Measurement System VibroMetra

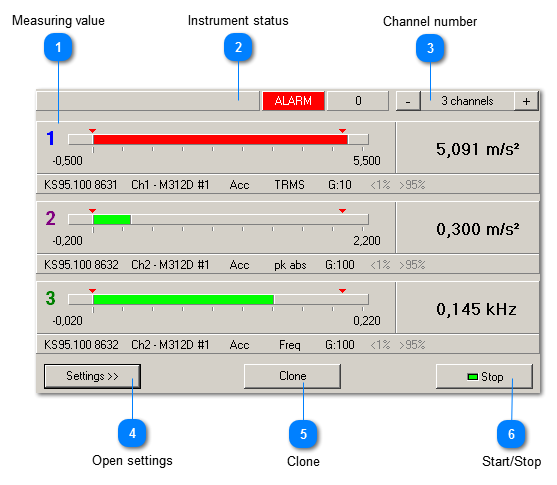

Display panel


This section shows the most important status and signal data.

Display panel
1

Measuring value


1. Measuring value

VM-REC displays the measuring value and status information for each channel. The channel number can be found on the left side. There is a bar graph and a number display for the measuring value.
Below is a status bar giving information about

2

Instrument status


2. Instrument status

If pre-trigger memory is filling with data a bar graph will indicate the fill level. The colored indicator in the middle shows the instrument status:

OK
No limit value exceeded
TRIG
Limit value exceeded but alarm delay not yet elapsed
ALARM
Limit value exceeded and alarm delay elapsed

The field on the right side indicates the number of records.
3

Channel number


3. Channel number
Increase or decrease the number of measuring channels (and curves). One to four channels are possible.
4

Open settings


4. Open settings
Opens and closes the setup menu.
5

Clone


5. Clone
Opens a new window with the same settings which can be modified.
6

Start/Stop


6. Start/Stop
Starts and stops measurement. When stopping the measurement during a recording, the current log file is deleted. Therefore, it is recommended to arrange several short recordings instead of one long recording.
