PC Vibration Measurement System VibroMetra

Measurement mode


On the left side of this window you find a selection tree with the different measuring modes. The right section shows some detailed settings.

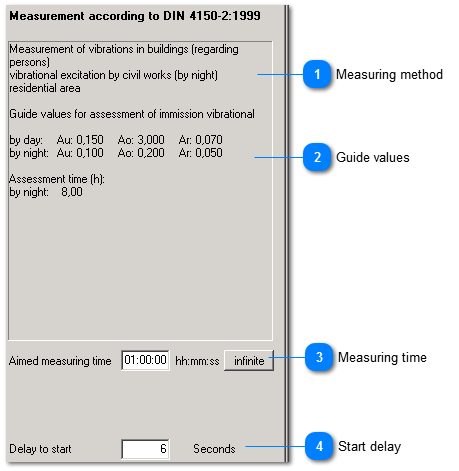

Measurement mode
1

Measuring method


1. Measuring method

Shows the selected mode.
2

Guide values


2. Guide values

These are the limit values to DIN 4150-2 for the selected mode.
3

Measuring time


3. Measuring time

The measuring time can be limited to switch off the instrument automatically after measurement.
4

Start delay


4. Start delay

The time delay between pressing Start and the beginning of the actual measurement can be used to suppress signal settling effects.
