PC Vibration Measurement System VibroMetra

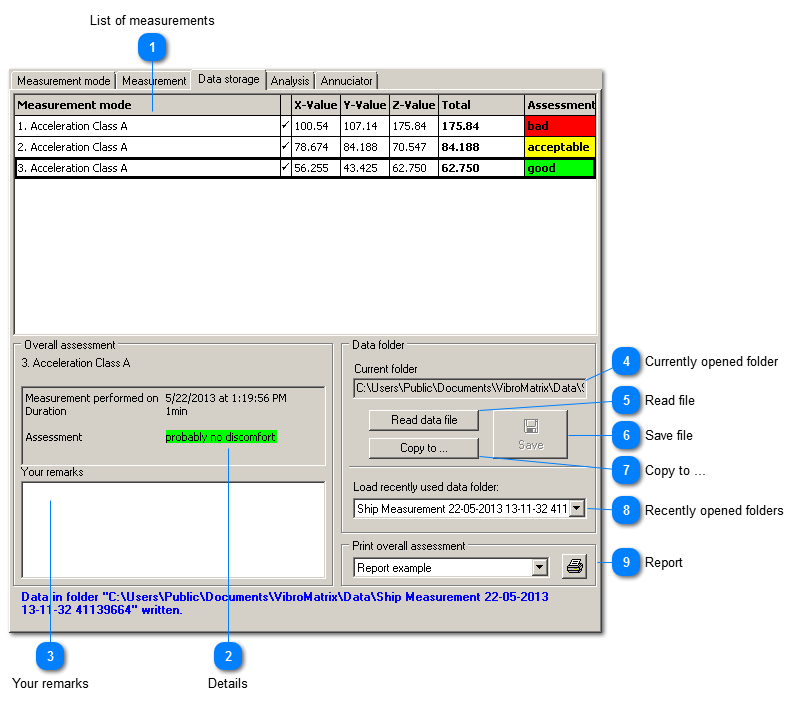

Data storage


The results of all completed measurements are transferred to the data storage. All measurements are listed up here incl. individual details. Data storages can be saved on a data medium and be read into VM-SHIP again. You can load several data storages to combine the contained measurements to one big data storage.
Data storage
1

List of measurements

1. List of measurements

The results of all measurements are listed up here including the values of the single axes as well as the vibration total value and its assessment. If irregularities were detected during the measurement, the measurement is marked with an exclamation mark.
2

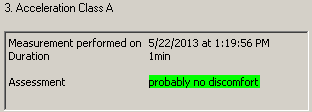

Details

2. Details
This field shows time and assessment of the measurement.
3

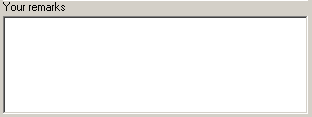

Your remarks

3. Your remarks
You may add your own remarks for each measurement.
4

Currently opened folder

4. Currently opened folder
This field shows which data folder is currently open.
5

Read file

5. Read file
This button opens a directory tree from which you can select the measurement folder. The read data is added to the data in data storage. This way, you can for instance combine measurements from different days.
6

Save file

6. Save file
This button saves the current data storage on a data medium.
7

Copy to ...

7. Copy to ...
This button saves the current data storage on a data medium. You can enter a new name for the measurement folder.
8

Recently opened folders

8. Recently opened folders
This drop-down list shows the recently used data folders. By clicking on an entry, the respective data folder is opened.
9

Report

9. Report
Allows the selection of a report template and the printing of the selected measurement.
