PC Vibration Measurement System VibroMetra

Measurement mode

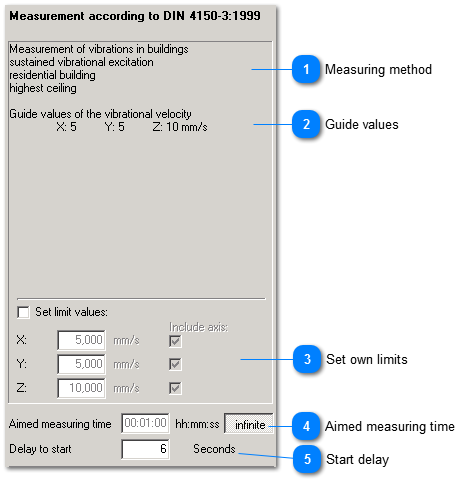

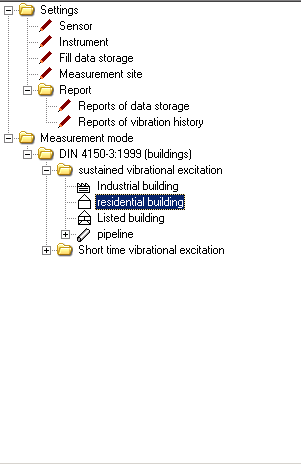

On the left side of this window you find a selection tree with the different measuring modes. The right section shows some detailed settings.

Measurement mode
1

Measuring method


1. Measuring method
Shows the selected mode.
2

Guide values


2. Guide values
These are the limit values to DIN 4150-3 for the selected mode.
3

Set own limits


3. Set own limits
Here you may enter non-standard limits if desired.
4

Aimed measuring time


4. Aimed measuring time

The measuring time can be limited to switch off the instrument automatically after measurement.
5

Start delay


5. Start delay

The time delay between pressing Start and the beginning of the actual measurement can be used to suppress signal settling effects.
