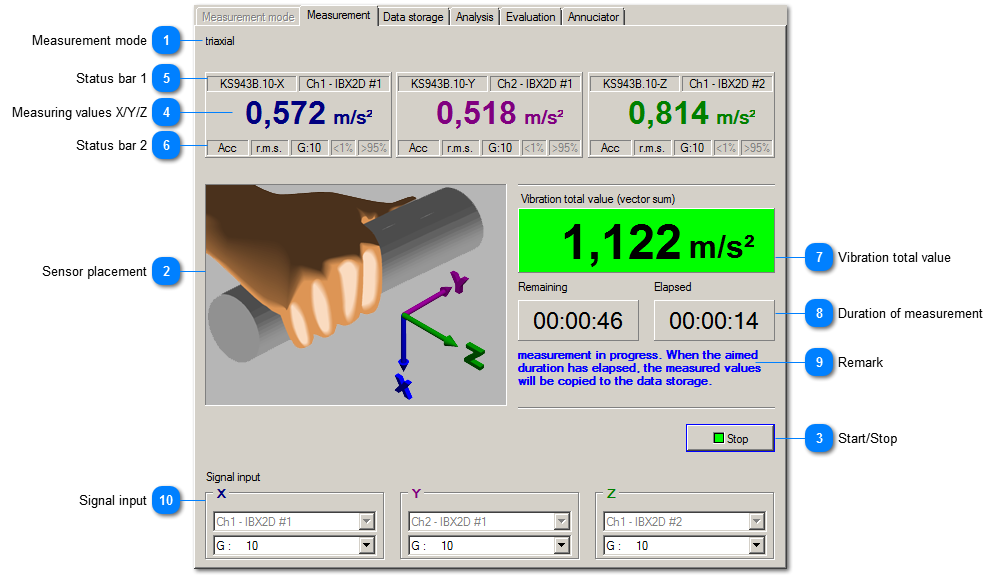

While measuring, VM-HAND displays the vibration total value and a colored assessment.
 Measurement mode
|
|
 Sensor placement
|

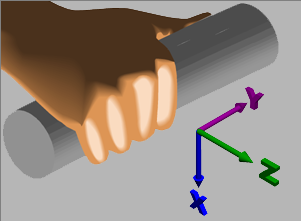

The image shows the hand's coordinate system and the position of the sensor with regard to the hand. The assignment of sensor axes can be changed.
|
|
|
 Start/Stop
|
Starts and stops measurement. Starting is only possible when all settings in Measurement mode menu have been completed.
|
|
|
 Measuring values X/Y/Z
|
This field displays the vibration value (weighted RMS value) for the measurement axes.
|
|
|
 Status bar 1
|
|
 Status bar 2
This status bar indicates:
|
|
 Vibration total value
|
This is the vector sum of the 3 axis values.
|
|
|
 Duration of measurement
Remaining and elapsed measurement time are displayed. The elapsed measurement duration counts with minus sign from start delay to 00:00:00. Afterwards, the elapsed measurement duration counts up to the aimed measuring time. The measurement is stopped when it reaches the aimed measuring time.
|
|
 Remark
This remarks inform about the current state.
|
|
 Signal input
At the signal input, you select the measuring channel and configure the measuring range. If you activated the sensor automatics VM-HAND selects the measuring channel automatically.
|
|
