PC Vibration Measurement System VibroMetra

Data export

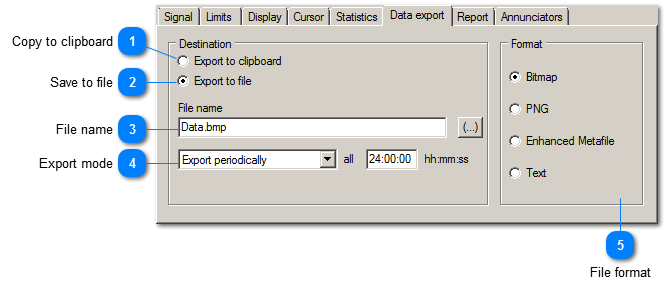

These settings control the action after clicking the copy / save button.

Data export
1

Copy to clipboard


1. Copy to clipboard

Selects the Copy function.
2

Save to file


2. Save to file

Selects the Save function. In addition periodic saving can be activated.
3

File name


3. File name

Enter the name of the file to be saved. The file name may include variables, like date, time, channel etc.
4

Export mode


4. Export mode

The following modes are available:
  • Export only manually
Data is only saved when clicking the Save button
  • Export periodically
Data is saved in time intervals. In addition manual saving is possible.
  • Export event controlled
Data is saved when a trace crosses a limit line. In addition manual saving is possible.
  • Save at rising edge
Data is saved when a trace crosses a limit line from below. In addition manual saving is possible.
  • Save at falling edge
Data is saved when a trace crosses a limit line from above. In addition manual saving is possible.

5

File format


5. File format
The following formats can be chosen for the export file
  • Bitmap
raster graphics file format
  • PNG
raster graphics file format, less than 10 % of bitmap file size without loss of quality
  • Enhanced Metafile
Windows enhanced metafile format, allow later changes of characters
  • Text
data is saved in a text table format including header which allows later processing by table calculation software
