PC Vibration Measurement System VibroMetra

Settings

Settings
1

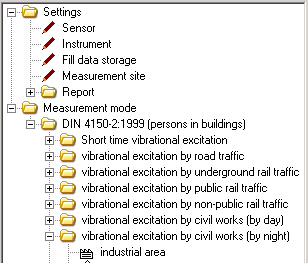

Selection tree


1. Selection tree
In the selection tree, you find the setting options and measurement modes in a clearly arranged way.
A measurement mode has to be selected before starting a measurement.

Depending on the selected measurement mode or setting option, the detail and configuration area on the right side changes.

By means of the buttons Show all measurement modes and show only standards the selection tree can be closed or opened completely.
2

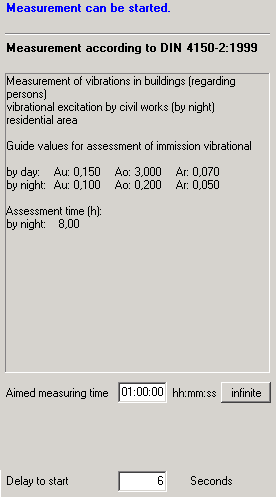

Detailed settings


2. Detailed settings
The detail and configuration area changes depending on the selection in the selection tree. Here you can configure:
3

All modes

3. All modes
Opens the complete selection tree.
4

Only standard modes

4. Only standard modes
Only shows DIN 4150-2 settings.
5

Clone

5. Clone
Opens a new window with the same settings which can be modified.

Content of Settings

Sensor settings
Data storage settings
Measurement site
Report templates
Measurement mode
