Properties of the measuring channel - signal generators
In the VibroMetra Simulator, you generate the measurement signals artificially. This way, no connected measuring devices are required.
![1](drex_bullet_1.png) Switching the control panels

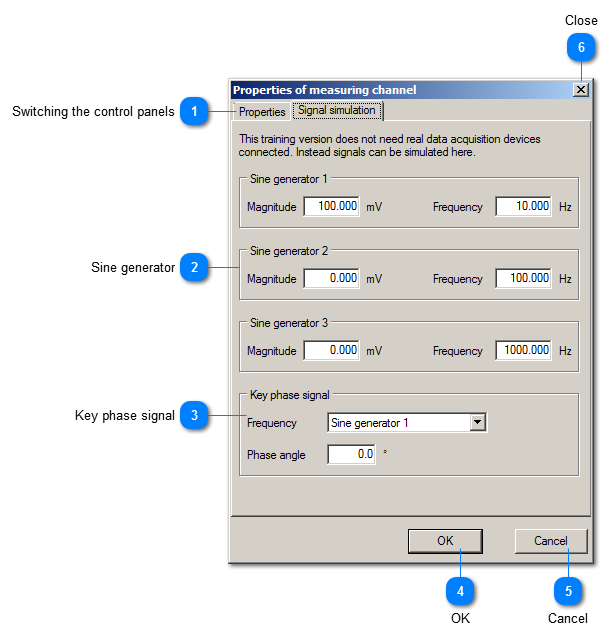

The control panel Properties contains the same settings like in VibroMetra Online. The elements of the control panel Signal simulation are presented here.
| |
![2](drex_bullet_2.png) Sine generator
Three sine generators are available to generate a signal mix. The generated signal simulates the input of a measuring device, to which measurement signals (in this case: the artificially generated ones) are applied. You can adjust magnitude and frequency for each generator. A magnitude of 0 mV deactivates the respective signal generator.
| |
![3](drex_bullet_3.png) Key phase signal
In addition to the sinusoidal signals you can generate a digital pulse. It occurs at a frequency of one of the selectable sine generators and you can enter a phase angle. To deactivate the digital pulse, select "Off" in the Frequency list.
| |
![4](drex_bullet_4.png) OK
![4. OK](drex_properties_of_the_measuring_channel___signal_generators_control_4.png) This button closes the window, saves the data and adjusts the signals.
| |
![5](drex_bullet_5.png) Cancel
![5. Cancel](drex_properties_of_the_measuring_channel___signal_generators_control_5.png) This button closes the window without saving changes.
| |
![6](drex_bullet_6.png) Close
![6. Close](drex_properties_of_the_measuring_channel___signal_generators_control_6.png) This button closes the window without saving changes.
| |
|
|
