PC Vibration Measurement System VibroMetra

Evaluation - Orbit

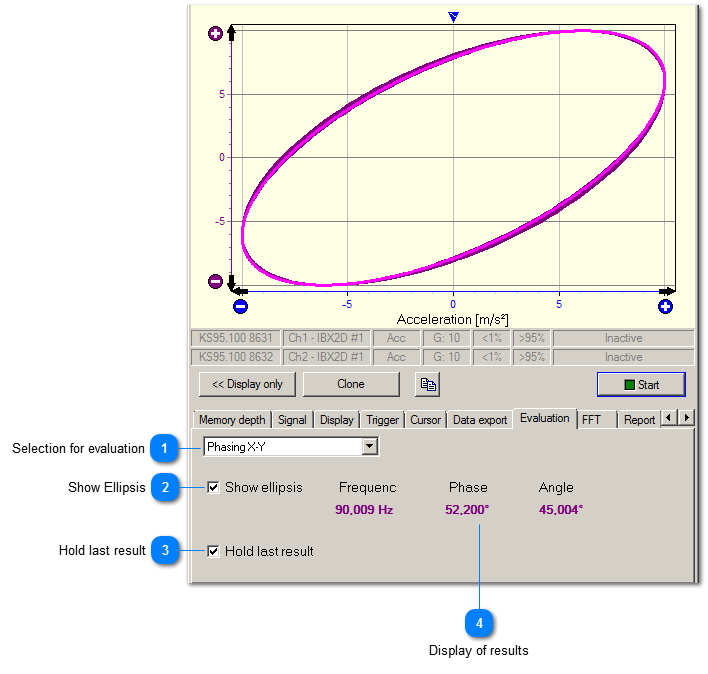

The phasing of the displayed X/Y curve can be determined in the orbit mode.

Evaluation - Orbit
1

Selection for evaluation


1. Selection for evaluation
Phasing X-Y can be selected for evaluation.
2

Show Ellipsis


2. Show Ellipsis
An ellipsis corresponding to the current results appears in the measurement curve.
3

Hold last result


3. Hold last result
The current evaluation result is displayed until a new evaluation is performed. If not activated, the result is discarded with the next triggering.
4

Display of results


4. Display of results
Display of the measured frequency, phasing and angle of the ellipsis.
