PC Vibration Measurement System VibroMetra

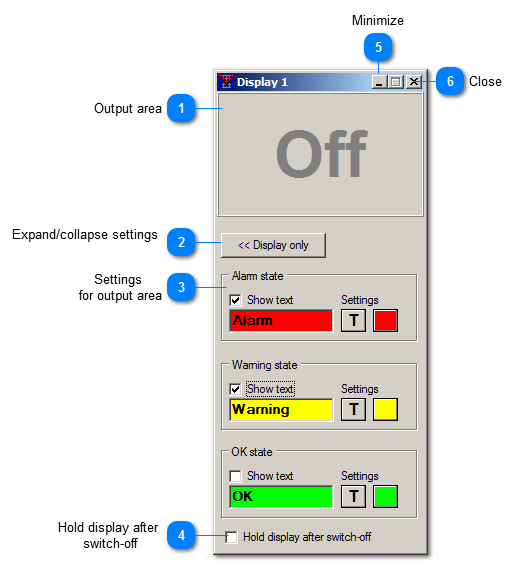

Configuration of a display annunciator


The display is suitable for a big but reduced view on the measurement results. Connected to an instrument, it can collapse its detailed settings and only displays the result of the measurement in a big and clear way.
Configuration of a display annunciator
1

Output area


1. Output area
Depending on the configuration, the output area displays measured values or texts.
2

Expand/collapse settings


2. Expand/collapse settings
After you have completed the configuration of the display, you can collapse the settings area. You can expand it again for configuration.
3

Settings  for output area


3. Settings  for output area

You can configure the output area individually for three states.
  • If you activate this option, the entered text will be displayed in the output area.
  • If you do not activate this option, the measured value will be displayed in the output area.
Enter the text for the respective state here.
This button opens a dialog box for selecting font type and also font size.
This button opens a dialog box for selecting the background color.

4

Hold display after  switch-off


4. Hold display after  switch-off
  • If you activate this option, the last output is held after you switched off the connected instrument.
  • If the option is deactivated, the display shows "Off" in grey color after you switched off the connected instrument.
5

Minimize


5. Minimize
This button minimizes the display.
6

Close


6. Close
This button closes the display.
But it can be opened again, for instance by a double click in the selection tree. Only deleting the annunciator will erase the display permanently.
