Milling radially


Mass can be removed on the side of the unbalance by milling. VM-BAL calculates angle position and milling depth.
The density of the removed rotor material is needed to calculate the removed mass.

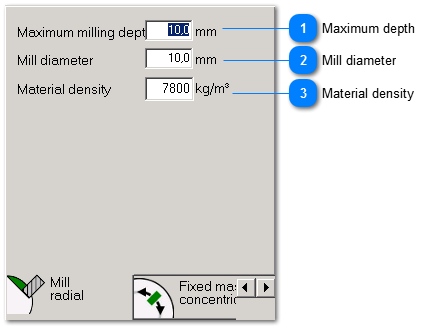

Milling radially
1

Maximum depth


1. Maximum depth

2

Mill diameter


2. Mill diameter

3

Material density


3. Material density
