Teach radio switches


If a radio switch is to work on one of the 16 available channels, it has to be taught on the respective channel. That is why the properties window for the annunciator type radio switch offers a teaching function. The teaching function is only visible if the connection between instruments and annunciators has been interrupted by means of the central master switch.

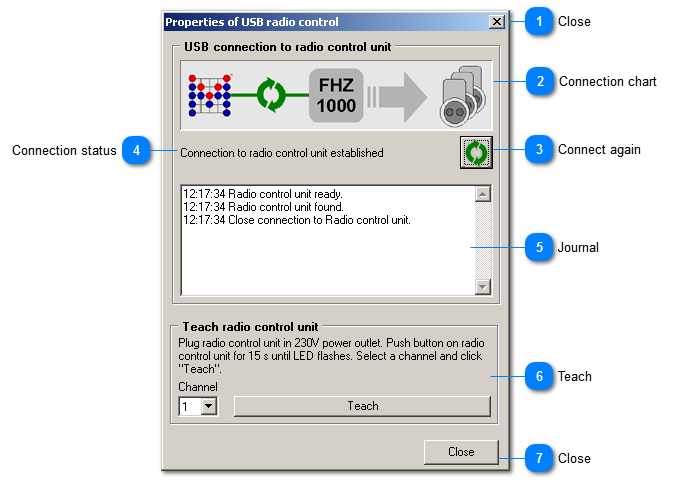

Teach radio switches
1

Close


1. Close  This button closes the window.
But it can be opened again, e.g. by a double click in the selection tree.
2

Connection chart


The connection status between VibroMetra and the radio control unit is shown in a connection chart.
Unconnected status
Connected status

The connection to the radio control unit has to be established to teach radio switches.
3

Connect again


3. Connect again  If the connection has been interrupted (e.g. because the USB cable has been removed), you can establish the connection again by clicking this button.
4

Connection status


4. Connection status  This entry shows the successful connection.
5

Journal

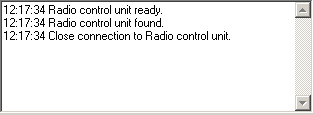

5. Journal
The connection attempts to the radio control unit and the result are listed up here as well as entries for switching processes.
6

Teach

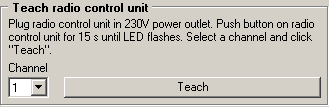

6. Teach

  • Select the channel on which the radio switch is to work.
  • Plug radio switch in a 230V power outlet.
  • Push the on-off switch of the radio switch for 15 seconds.
  • A flashing LED on the on-off switch of the radio switch signals the teaching mode.
  • In the teaching function, you now select the channel on which the radio switch is to work.
  • Click on "Teach".
  • The flashing on the on-off switch of the radio switch stops now. The radio switch has been taught successfully.

7

Close


7. Close   This button closes the window.
But it can be opened again, e.g. by a double click in the selection tree.
