Manfred Weber
Metra Mess- und Frequenztechnik in Radebeul e.K.
PC Vibration Measurement System VibroMetra

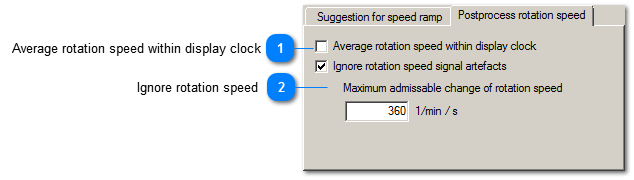

Postprocess rotation speed

Postprocess rotation speed
1

Average rotation speed within display clock


1. Average rotation speed within display clock
If activated, the speed is displayed averaged per display clock. This stabilizes the speed signal.
This function should not be activated if not averaged speed impulses shall apply.
2

Ignore rotation speed


2. Ignore rotation speed
The change of rotation speed is monitored. If incorrect speed signals occur (e.g. disturbed reflection), these are discarded. The maximum admisiable change of rotation speed can be defined freely.
