PC Vibration Measurement System VibroMetra

Setup panel


The setup menu opens after clicking the Settings button.

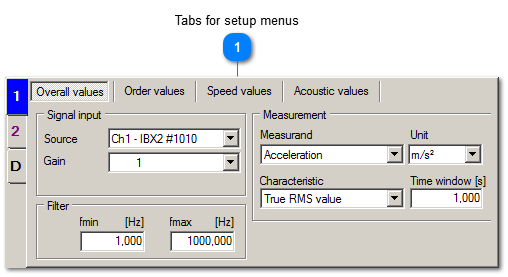

Setup panel

1

Tabs for setup menus


1. Tabs for setup menus

Settings for the signal source
Settings for the warning and alarm limits
Settings for curve scaling and grids
Cursor enable / disable, cursor readout
Maximum, minimum and average values for each channel
Settings for the copy / save button
Settings for report printing
Settings for external alarm devices
