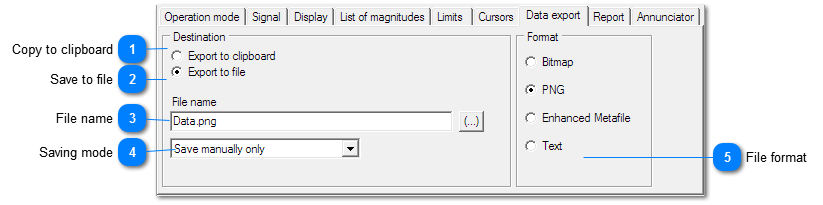

The measurement data from VM-FFT can be exported easily. The export is started by pushing the export button.
Data export
1

Copy to clipboard


1. Copy to clipboard
Selects the Copy function.
2

Save to file


2. Save to file
Selects the Save function.
3

File name


3. File name
You can directly enter a file name for the data to be saved. The button (...) opens a dialog which also allows to enter a file name. Additionally, you can include placeholders in the filename which are filled when the data is saved.
4

Saving mode


4. Saving mode
5 modes are available:
• Save manually only:
Data is saved when clicking the save button.
• Save periodically:
Data is saved in time intervals.
• At crossing the limit curve:
Data is saved as soon as frequency lines cross the limit curve in both directions.
• At exceeding the limit curve:
Data is saved as soon as frequency lines exceed the limit curve (not when returning below it)
• At trigger
Data is saved at trigger.
5

File format


5. File format
The following file formats are available:
• Bitmap
raster graphics file format
• PNG
raster graphics file format, less than 10 % of bitmap file size without loss of quality
• Enhanced Metafile
Windows enhanced metafile format, allow later changes of characters
• Text
data is saved in a text table format including header which allows later processing by table calculation software
