Bearing table


You can save damage frequencies for the bearings you use most in the table of bearings. You can enter values by applying bearings from the bearing database (more than 25,000 entries) or from the manufacturers' instructions here. Data can be acquired from the technical service or online, e.g. http://medias.schaeffler.de/medias/en. Furthermore, numerous series will be available for import within VibroMetra.

The table of bearings is centrally available for all VM-FFT windows on one computer. If you want to take over the table of bearing to other computers as well, just copy it. You find it here: [VibroMetra folder]\1.9.0\Config\Bearings.db.
Bearing table

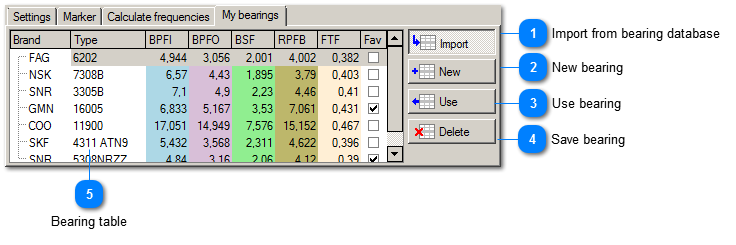

1

Import from bearing database


1. Import from bearing database
Opens/Closes the integrated bearing database with more than 25,000 entries.
2

New bearing


2. New bearing
Click to create a new entry.
3

Use bearing


3. Use bearing
Use the selected bearing for bearing diagnosis. The bearing parameters are displayed as markers in the spectrum.
4

Save bearing


4. Save bearing
Delete the selected bearing from the table.
5

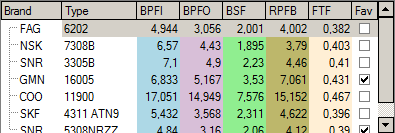

Bearing table


5. Bearing table

The table of bearing contains the name of the bearing and the respective damage frequencies (as multiples of the rotation speed). The individual columns of the bearing table can be sorted ascending or descending. The last column Fav is used to highlight bearings that are used especially often (Favorites).
