PC Vibration Measurement System VibroMetra

Report printing


Simple reports can be directly printed from the VibroMetra modules. Each module with report function includes a sample report. It can be used as a basis for your customized report templates.


Printing without printer


If no printer is at hand you can use PDF printers to save your reports.


Using templates


Report templates are shown in a tree structure of printable elements. Each of these elements has properties like its position on the page. Three types of report elements are selectable:
fixed text
fixed images
variable text or images generated by the software

Functions related to report templates are shown in a context menu. There are also import and export functions to exchange report templates between different  Workspaces and computers.



Changing report elements


Double click an element in the tree menu to change its properties.

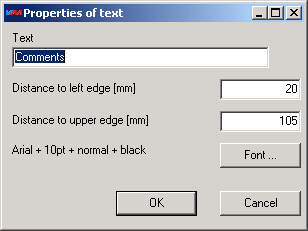

For fixed text enter

  •  the text to be printed
  •  the text position on the page
  •  character size and color

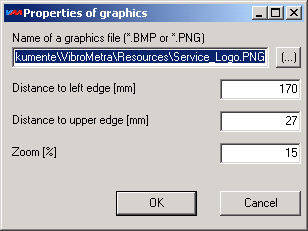

For fixed images enter

  •  the file name of the image to be printed
  •  the position on the page
  •  the zoom ratio
Variables are filled by the VibroMetra modules, for example, with measuring values or settings.

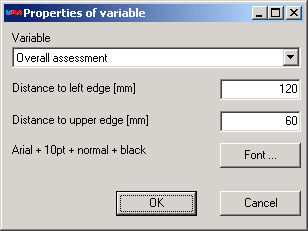

For variable text enter

  •  the variable to be printed
  •  the text position on the page
  •  character size and color

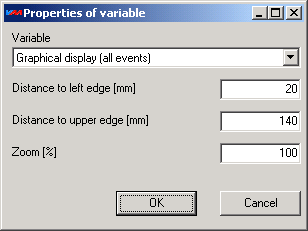

For variable images enter

  •  the variable of the image to be printed
  •  the position on the page
  •  the zoom ratio

Clone, export or import report templates


There are several ways of reusing or modifying existing report templates:

Right click an existing report template . Click Clone... to create a new template based on the existing one.
Right click an existing report template . Click Export... to save the report template.

Right click in an empty space of the tree structure to import an existing template file.


Sorting report elements


In all reports the sorting order of the individual variables can be customized. For this purpose click right into an empty area of the report configuration. The appearing menu allows to deactivate the alphabetical order. Then each element can be sorted individually by shifting it with the left mouse button.
