PC Vibration Measurement System VibroMetra

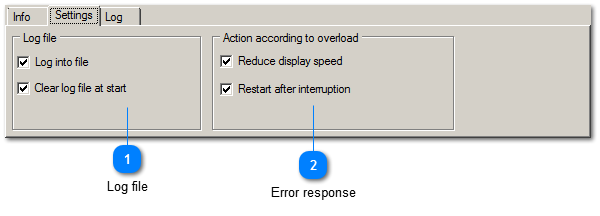

System settings


System settings
1

Log file


1. Log file
You can activate the logging of internal states and events into a file to analyze the behavior of VibroMetra in special situations.
2

Error response


2. Error response
VibroMetra works with a continuous data stream. From start to stop, every single sample is transmitted to the instruments for analysis. But if the PC is not able to cope with the data stream (CPU load permanently exceeds 100%) , there will be interruptions which are not in accordance with VibroMetra' way of working.
In this case, it can be selected if the display speed shall be reduced. By the reduced display rate the CPU load is reduced as well. If sufficient computing power is available again, the display speed increases automatically.
In some cases, VibroMetra simply stops measuring to signal the problem. Just click on Stop/Start to continue the measurement.
For unattended measurements, you can instruct VibroMetra to restart the measurement automatically after overload.
