PC Vibration Measurement System VibroMetra

VibroMetra 1.9.0


VibroMetra is a high-quality tool for the precise real-time measurement of vibrations, sound and further alternating quantities. Users in research and development, service and maintenance, engineering and consultant offices receive the required measurement information quickly and uncomplicatedly by means of VibroMetra.

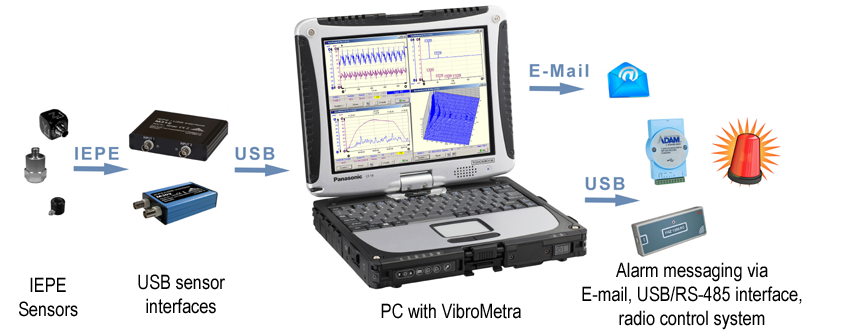

Set-up


  • Sensors with voltage output are directly connected to data converters.
  • Data converters type M302/M312 condition and digitize the sensor signals.
  • A conventional computer generates measurement information from the digital signals at once.
  • Convenient for unattended measurements: Messages can be generated, e.g. if limit values are exceeded.



Overview


  • There is a comprehensive offering of vibration accelerometers, measurement microphones and other types when it comes to the sensors. Sensor technologies like integrated amplifier (IEPE) or integrated data sheet (TEDS) are directly supported by the data converter. The complete measurement equipment is supplied by USB - an additional mains adapter is not required.

  • VibroMetra is modular. It can be operated with one sensor but also with several sensors at the same time. One or many measurement programs can run on the screen. Everything simultaneously and live. VibroMetra can be adapted exactly to the demands of your measurement task and be extended if required.

  • For the user, his instruments are the most important tool. These measurement programs can be started at once and display the measurement information on the screen in real-time.

  • Since many sensors, USB devices and instruments can run simultaneously, VibroMetra helps you to keep track of everything. It is the control center of VibroMetra.

VibroMetra including its application is described in detail on the following pages. Usually, you will not read this document sequentially, but press the F1 button in VibroMetra to request help. This file will be opened on the suitable page then.
