Configuration of a radio switch

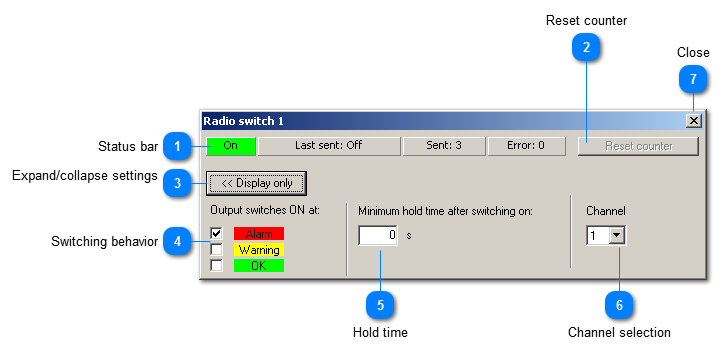

Each radio switch can be configured individually.
![1](drex_bullet_1.png) Status bar
The status bar indicates
-
-
-
-
number of errors occured when sending commands
|
|
![2](drex_bullet_2.png) Reset counter
This button zeros the counter for the errors.
|
|
![3](drex_bullet_3.png) Expand/collapse settings
![3. Expand/collapse settings](drex_configuration_of_a_radio_switch_control_3.png) This button expands/collapses the setting area.
The annunciator uses less space on the screen in collapsed state.
|
|
![4](drex_bullet_4.png) Switching behavior
In this area, you decide at which state the output is to switch on. The output switches off if the connected instrument shows a different state.
|
|
![5](drex_bullet_5.png) Hold time
You can enter a minimum hold time after switching on to make sure that slower successive devices are able to recognize the switching state.
|
|
![6](drex_bullet_6.png) Channel selection
![6. Channel selection](drex_configuration_of_a_radio_switch_control_6.png) Selection of the transmission channel. The settings are valid for all radio switches on this channe l.
|
|
![7](drex_bullet_7.png) Close
![7. Close](drex_configuration_of_a_radio_switch_control_7.png) This button closes the window.
But it can be opened again, for instance by a double click in the selection tree. Only deleting the annunciator will erase it permanently.
|
|
