Time axis settings


Time axis settings
1

Grid density

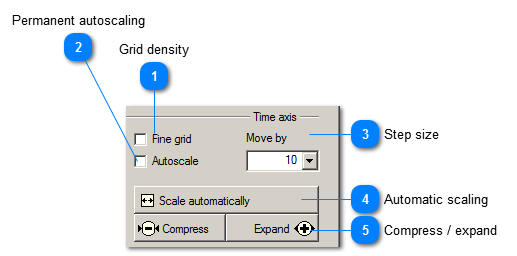

1. Grid density
If you activate this checkbox, VM-SCOPE will show grid lines at all graduation marks of the time axis.
2

Permanent autoscaling


2. Permanent autoscaling
Scales the time axis automatically so that always three periods of the dominant signal are shown.
3

Step size


3. Step size
The step size (shown in scale lengths) by which measurement curves and scale are shifted during a movement. For instance, 10% means that the measurement curves are moved by 1/10 of the frequency axis.
4

Automatic scaling


4. Automatic scaling
Scales the time axis once so that three periods of the dominant signal are shown.
5

Compress / expand


5. Compress / expand
These buttons expand or compress all measurement curves in time direction.
