Shifting fixed masses radially towards the center


This correction method is applied on the side of the unbalance. In practice set screws are used in radially drilled tapped holes. This method is normally combined with fixed positions.

Shifting fixed masses radially towards the center

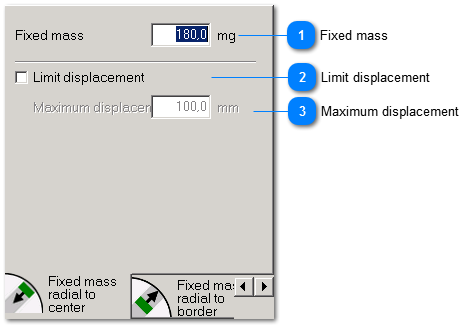

1

Fixed mass

1. Fixed mass
Mass of the set screw.

2

Limit displacement


2. Limit displacement

Limits the maximum distance for moving mass.
3

Maximum displacement


3. Maximum displacement
If you activated Limit displacement, you can enter the maximum displacement here.
