Vibration measurement
Vibration measurement as part of the verification run determines the amount of vibration after
mass changes
.
The rotor needs to run at constant speed.
After vibration measurement the remaining unbalance will be shown.

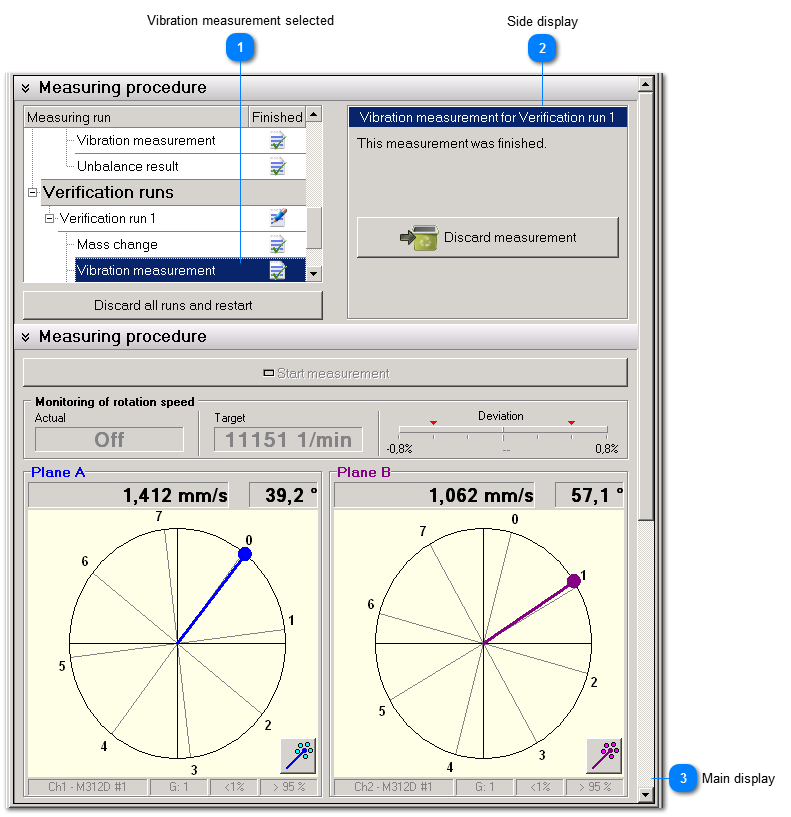

Vibration measurement selected
Select
Vibration measurement
under
Verification run X
in the
list of measuring runs
.
Up
Side display
This section is described
here
.
Up
Main display
This section is described
here
.
