PC Vibration Measurement System VibroMetra

Mass change


The mass of the rotor is changed with the purpose of reducing its unbalance. VM-BAL offers suggestions for suitable measures.
Mass change
1

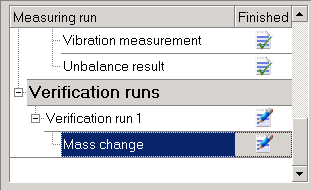

Mass change selected

1. Mass change selected

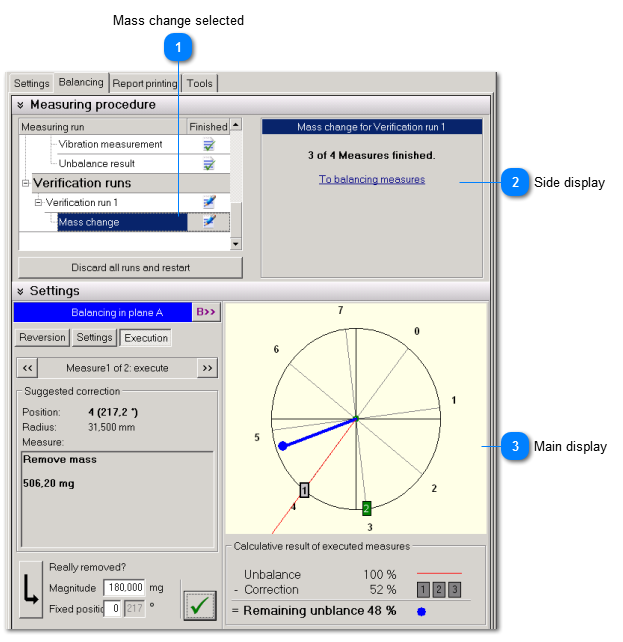

After continuing balancing a verification run is opened. The first step is a mass change.
2

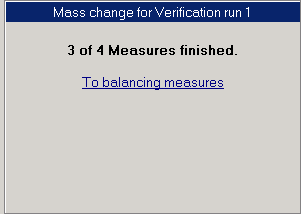

Side display


2. Side display
Here you find information about the steps of mass change to be done.
3

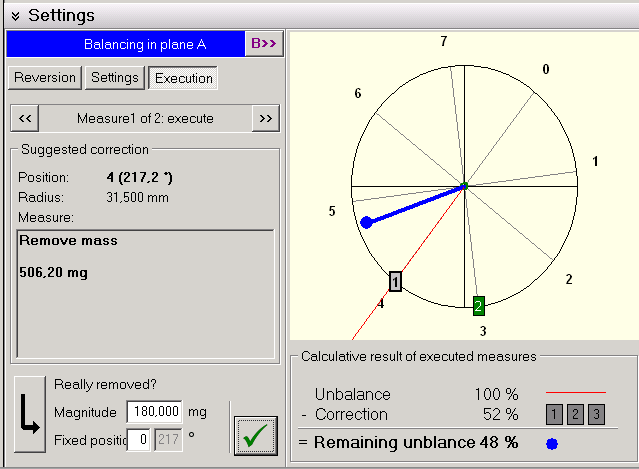

Main display


3. Main display

This panel allows
It also shows
