Reverse current balancing measures


By means of the summarization after a balancing procedure all executed measures can be combined to few measures. VM-BAL registered all mass changes during a balancing procedure and lists them up again.

If there are balancing measures of old balancing procedures on the rotor, they can be included in the summarization.

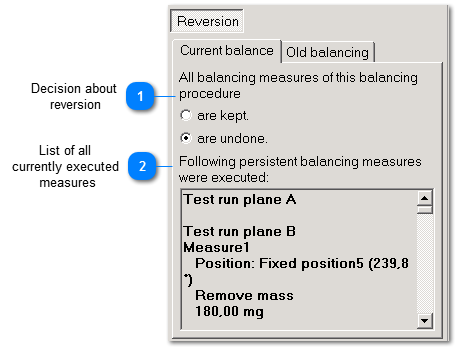

Reverse current balancing measures
1

Decision about  reversion


1. Decision about  reversion
If the measures from the current balancing procedure are to taken over into the summarization, you must select are undone.
2

List of all  currently executed  measures


2. List of all  currently executed  measures
If you decided to reverse all measures from the current balancing procedure, all executed measures are listed up to that you can reverse them on the rotor.
