PC Vibration Measurement System VibroMetra

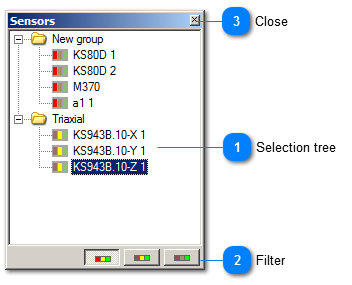

Sensor management


VibroMetra supports the use of different sensors by means of a sensor data base.
Sensor management
1

Selection tree


1. Selection tree
The selection trees shows all saved sensors. They are divided into groups. The traffic light on the left side of the sensor name is an activity indicator:

  •  red:
The sensor is not in use at the moment.
  •  yellow:
The sensor is assigned to a measuring channel but this channel is inactive.
  •  green:
The sensor is assigned to a measuring channel and this channel is measuring at the moment.
Mouse operation
  • A double click on a sensor entry opens the properties window of the respective sensor.
  • A double click on a sensor group opens the properties window of the respective group.
  • A right click on a sensor opens its context menu.
  • A right click on a sensor group opens its context menu.
  • A right click in an empty space of the selection tree opens its context menu.
2

Filter

2. Filter
You can restrict the sensor list, e.g. to sensors which are currently measuring (green activity indicator).
3

Close

3. Close  This button closes the sensor management.

Content of Sensor management

Properties of sensor
Properties of sensor group
Context menu sensor
Context menu sensor group
Context menu selection tree
