PC Vibration Measurement System VibroMetra

Data export


There are several ways to export measuring data from VM-OCT. Export is triggered by the Export button.

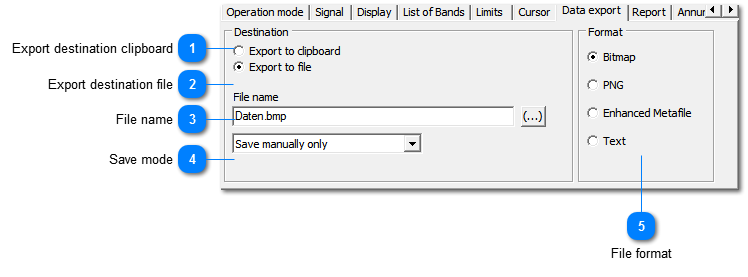

Data export
1

Export destination clipboard

1. Export destination clipboard
If selected, data will be transferred to the clipboard after clicking the export button

2

Export destination file

2. Export destination file
If selected, data will be saved to a file after clicking the export button
3

File name

3. File name

Enter file name and folder for the data to be saved. Variables can be used in the file name.

4

Save mode

4. Save mode

Four modes are available:
  • Save manually only
Data is saved after clicking the export button
  • Save periodically
Save automatically in fixed intervals
  • When crossing limit curve
Data is saved if the limit line is crossed in both directions
  • When exceeding limit curve
Data is saved if the limit line is exceeded (not when the value goes back below)

5

File format


5. File format
The following file formats are available:
• Bitmap
raster graphics file format
• PNG
raster graphics file format, less than 10 % of bitmap file size without loss of quality
• Enhanced Metafile
Windows enhanced metafile format, allow later changes of characters
• Text
data is saved in a text table format including header which allows later processing by table calculation software
