PC Vibration Measurement System VibroMetra

Setup panel


In the extended display mode the operation panel opens. It includes measurement and functional settings.

Setup panel
1

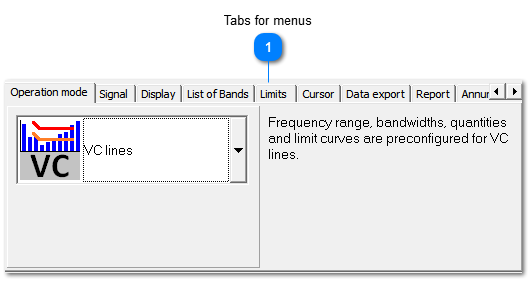

Tabs for menus


1. Tabs for menus

The submenus are:

Selects the function of VM-OCT
Signal conditioning settings
Settings for the diagram including the selection of octave, 1/3 or 1/6 (only in acoustic mode)
Automatic detection of bands with the highest amplitudes and output as chart
Adjustment of predefined limit curves
Activation of cursors with readout function
Settings for format, destination and time of saving data
Settings for report generation
Settings for actions of annunciators, e.g. in case of limit exceedance
