PC Vibration Measurement System VibroMetra

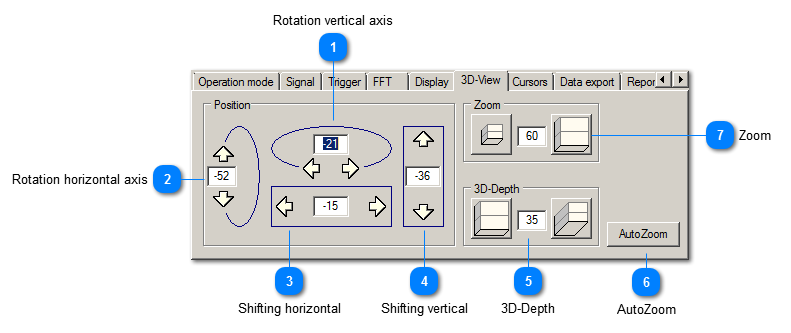

Settings for 3D-View

Settings for 3D-View
1

Rotation vertical axis


1. Rotation vertical axis
Click the corresponding arrow to the left or right resp. enter an angle between -80° and 80° in order to rotate the measurement chart around a vertical axis. By holding down the right mouse button on the measurement chart and moving the mouse to the left or right, the chart can be rotated as well.
2

Rotation horizontal axis


2. Rotation horizontal axis
Click the corresponding arrow up or down resp. enter an angle between -0° and 90° in order to rotate the measurement chart around a horizontal axis. By holding down the right mouse button on the measurement chart and moving the mouse up or down, the chart can be rotated as well.
3

Shifting horizontal


3. Shifting horizontal
Click the corresponding arrow or enter a pixel value to shift the measurement chart to the left or right. By holding down the left mouse button on the measurement chart, it can be shifted as well.
4

Shifting vertical


4. Shifting vertical
Click the corresponding arrow or enter a pixel value to shift the measurement chart upt or down. By holding down the left mouse button on the measurement chart, it can be shifted as well.
5

3D-Depth


5. 3D-Depth
The depth of the measurement chart can be changed by clicking the buttons or by entering a value between 0 and 100.
6

AutoZoom


6. AutoZoom
AutoZoom customizes the size of the measurement chart optimally to the size of the window. The chart is zoomed in or out so that all FFT spectra and diagram labels are visible.
7

Zoom


7. Zoom
For improved visibility of details the measurement chart can be zoomed in by clicking the buttons or entering a value.
