PC Vibration Measurement System VibroMetra

Settings

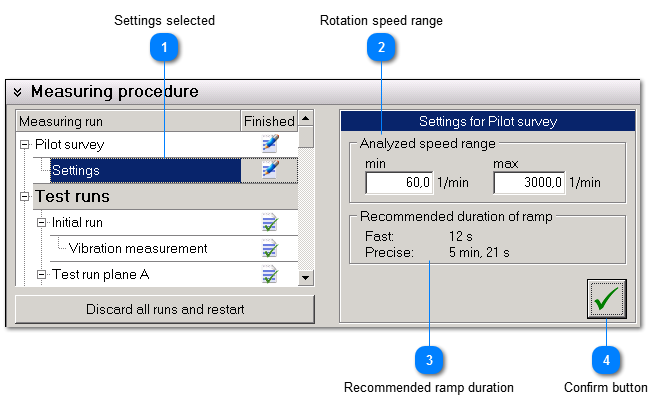

The only setting needed for the pilot survey is the rotation speed range used.

Settings
1

Settings selected

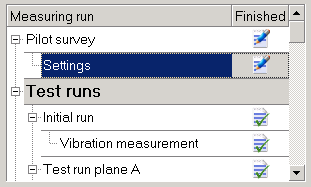

1. Settings selected
Click this entry to open the settings.

2

Rotation speed range


2. Rotation speed range
Enter the rotation speed range here in which you intend to balance the rotor.

3

Recommended ramp duration


3. Recommended ramp duration
VM-BAL calculates the minimum time needed  for acceleration.  The smaller the entered rotation speed range and the minimum value the faster rotation speed can be increased.

4

Confirm button


4. Confirm button
Click this button to confirm the settings you have made. The settings will be locked by horizontal lines and measurement is enabled.
