PC Vibration Measurement System VibroMetra

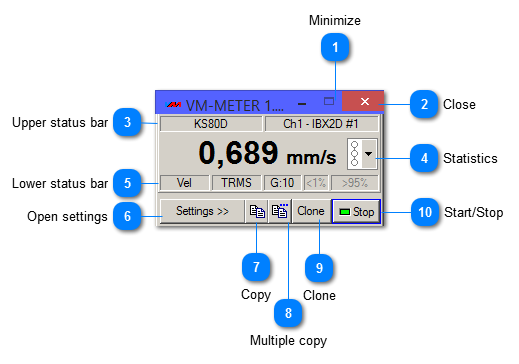

Display panel


In this section you see measuring values and status indicators.

Display panel
1

Minimize


1. Minimize
This button minimizes VM-METER.
2

Close


2. Close
This button closes VM-METER.
3

Upper status bar


3. Upper status bar
Shows the connected sensor and input channel.
4

Statistics


Choose between instantaneous, average, maximum and minimum value. All four values are always measured in the background.
  • Statistics will help you to detect instability.
5

Lower status bar


5. Lower status bar
Shows selected vibration measurand and characteristic, gain, underload and overload.
6

Open settings


6. Open settings
Opens and closes the setup menu.
7

Copy


7. Copy
Copies value and unit into the clipboard.
8

Multiple copy


8. Multiple copy
Copies value and unit of all opened VM-METER windows into the clipboard.
9

Clone


9. Clone
Generates an additional VM-METER with the same settings. The newly created VM-METER can be configured freely.
10

Start/Stop


10. Start/Stop
Starts and stops measurement.
