PC Vibration Measurement System VibroMetra

Data storage

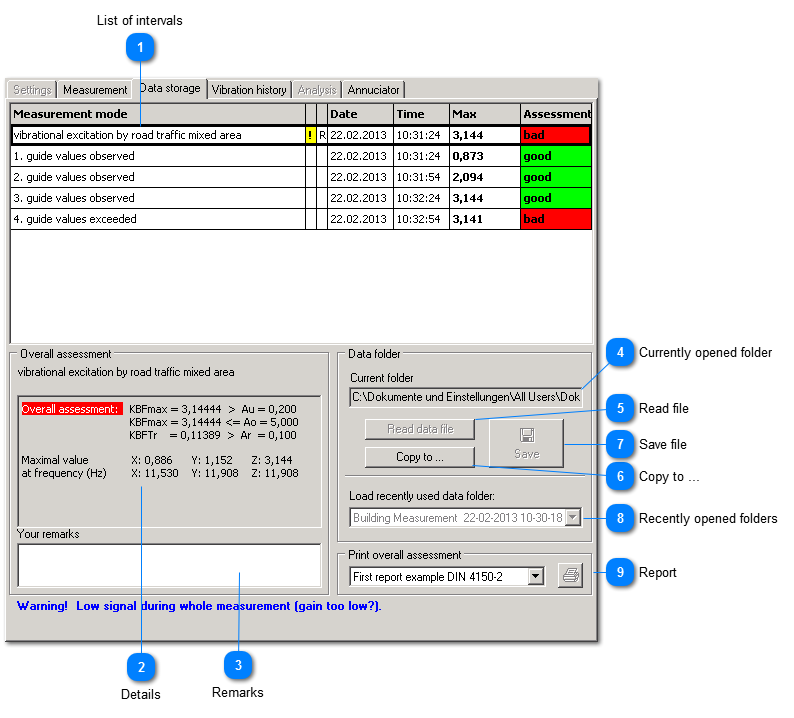

Data is stored in the memory in time intervals.
Data storage
1

List of intervals


1. List of intervals

This section shows the record intervals including time, date and maximum value. An exclamation mark indicates possible conflicts.

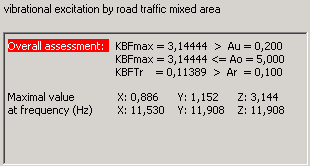

The first line gives an evaluation summary including the highest measuring value.
2

Details

2. Details
Here you see for the marked event:
  •  Guide value for each axis
  •  Measuring value for each axis
  •  Main frequency for each axis
3

Remarks

3. Remarks
You can enter comments here for each event.
4

Currently opened folder

4. Currently opened folder
This field shows which data folder is currently open.
5

Read file

5. Read file
This button opens a directory tree from which you can select the measurement folder.
6

Copy to ...

6. Copy to ...
This button saves the current data storage on a data medium. You can enter a new name for the measurement folder.
7

Save file

7. Save file
This button saves the current data storage on a data medium.
8

Recently opened folders

8. Recently opened folders
This drop-down list shows the currently used data folders. By clicking on an entry, the respective data folder is opened.
9

Report

9. Report
Allows the selection of a report template and the printing of the selected measurement.
