PC Vibration Measurement System VibroMetra

Bearing diagnosis


Bearing diagnosis uses envelope analysis to display damages. Suitable damage frequencies for the type of bearing are displayed in the measurement chart and thus allow to allocate displayed magnitudes to the damaged component.

Bearing diagnosis
1

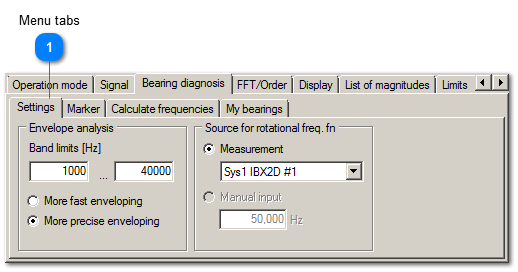

Menu tabs


1. Menu tabs

The following submenus are available:
Parameters of envelope analysis and source for rotation speed
Setting and display of markers for damage frequencies
Calculation of damage frequencies using the dimensions of the bearing
Storage for damage frequencies of bearings that are frequently used
