Vibration measurement


Vibration measurement in the initial run determines the magnitude of vibration caused by the unknown unbalance.
The rotor has to run at constant speed.
Vibration measurement
Vibration measurement is followed by a test run for plane A starting with mass change.

If two plane balancing is selected and only one plane shall be balanced after the initial run, this plane can be selected by clicking the More button.

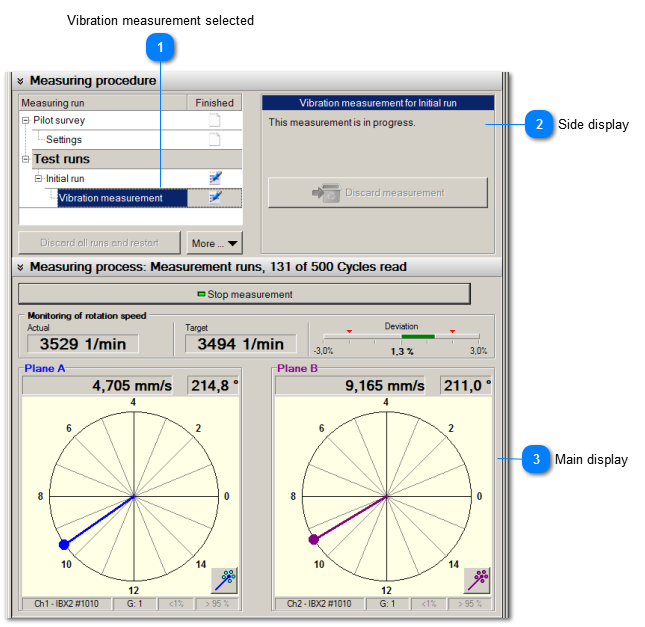

1

Vibration measurement selected

Select Vibration measurement under Initial run in the list of measuring runs.
2

Side display

This section is explained here.
3

Main display

This section is explained here.
