PC Vibration Measurement System VibroMetra

Setup panel

Setup panel
1

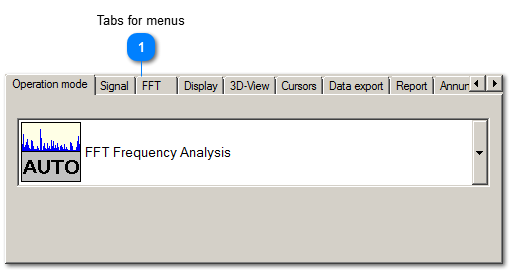

Tabs for menus

1. Tabs for menus

The sub-menus are:
Selecting the operation mode
Signal processing settings to condition the signal
Settings to analyze processes with defined starting points
Extended settings for frequency analysis
Settings for the display of measurement curves
Settings for 3D-view
Activation/deactivation of cursors, display of measurement data at the cursor position
Settings for destination, time and formats of data to be saved
Settings for report printing
Settings for actions of annunciators, e.g. in case of limit exceedance
More tabs for menus appear when switched to 2D mode . The options to select and operate comply to the ones of VM-FFT.
