Drilling radially


Drilling is a method to remove mass on the side of the unbalance. VM-BAL calculates angle positions, depth and number of drillings.

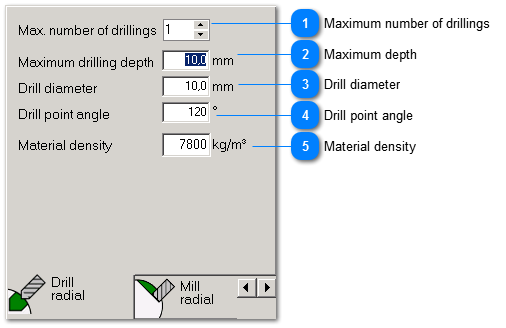

Drilling radially
1

Maximum number of drillings


1. Maximum number of drillings
Up to 3 equal drillings are allowed to increase the amount of removed material
2

Maximum depth


2. Maximum depth

3

Drill diameter


3. Drill diameter

4

Drill point angle


4. Drill point angle

5

Material density


5. Material density
The density of the removed rotor material is needed to calculate the removed mass.
