PC Vibration Measurement System VibroMetra

Cursors

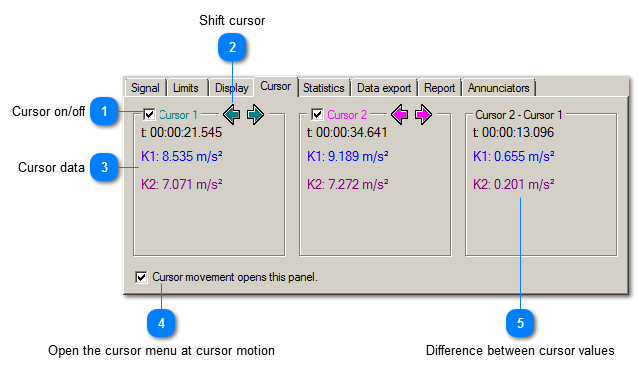

Cursors
1

Cursor on/off


1. Cursor on/off

2

Shift cursor


2. Shift cursor
Shift the cursor in the direction of the time axis. Shifting is also possible by dragging the cursor line directly.
3

Cursor data


3. Cursor data
Cursor time position and measuring value for each trace at this moment.
4

Open the cursor menu at cursor motion


4. Open the cursor menu at cursor motion
When this option is selected the cursor tab will open automatically when the position of the cursor line is moved by the mouse.
5

Difference between cursor values


5. Difference between cursor values
Shows the difference of magnitude and time between the two cursors.
