Reverse old balancing measures


Reversion of balancing measures means removing added masses from old balancing procedures. When you remove a mass, you have to enter its data into the list of removed masses.

Masses have to be removed on a balancing radius which is consistent with the radius you entered in the settings.

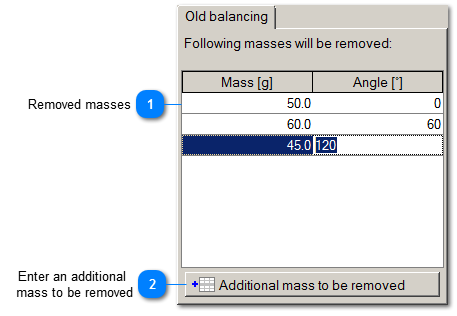

Reverse old balancing measures
1

Removed masses


1. Removed masses
This list contains all removed masses. Data can be changed directly in the list. The value of the mass is determined by means of scales. The angle position is measured opposite to the zero reference mark. But it has to fit together with entered angle settings if measures from a current balancing procedure are included in the summarization as well.

Deleting a row or the whole table is initiated by clicking with the right mouse button.

2

Enter an additional  mass to be removed


2. Enter an additional  mass to be removed
This button adds a new row to the list.
