PC Vibration Measurement System VibroMetra

Properties of sensor


You can save the properties of each sensor in use. Several common alternating measurands are already listed with suitable units. But you can also enter sensors for other measurands. The basic data contains a clear identification with type and serial number as well as the sensor sensitivity.
If the sensor is equipped with TEDS technology, basic data and calibration state are read directly from the sensor and entered automatically.

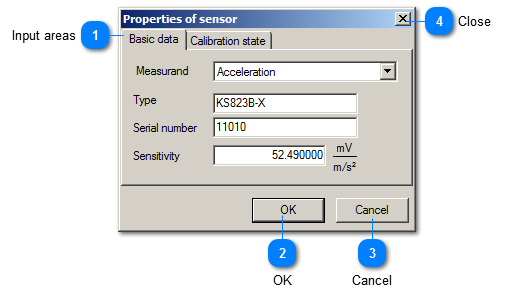

Properties of sensor
1

Input areas


1. Input areas

By means of these tabs, you switch the input areas:
  • Basic data: Measurand, clear identification and sensitivity
  • Calibration state: Time information concerning calibration
  • If you selected the measurand User measurand, a third input area is available to characterize this measurand.
2

OK


2. OK   This button saves the sensor properties and closes the window.
3

Cancel


3. Cancel    This button closes the window without saving changes.
4

Close


4. Close  This button closes the window without saving changes.
