PC Vibration Measurement System VibroMetra

Display of traces


Display of traces
1

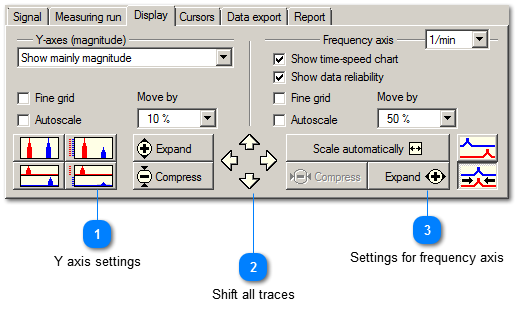

Y axis settings


1. Y axis settings
These settings change vertical scaling and arrangement of traces in the diagram.
2

Shift all traces


2. Shift all traces
Shifts all traces together into the desired direction.
3

Settings for frequency axis


3. Settings for frequency axis
In this area, you can adjust all settings which influence the measurement curves in horizontal direction, i.e. in direction of the frequency axis.
