Data storage settings

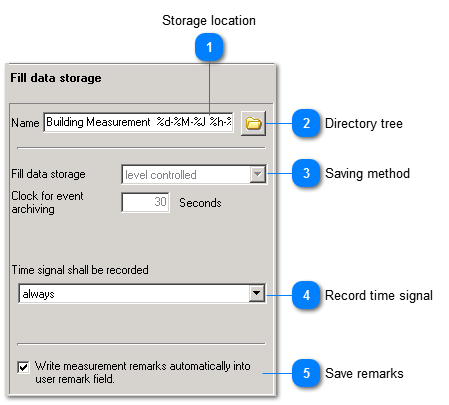

Data storage settings
1

Storage location


1. Storage location
The data storage can be named here. It is saved as a directory. Additional to fixed components, the name of the directory can also contain variable components, the placeholders.
2

Directory tree


2. Directory tree
This button opens a directory tree.
Data storage is carried out in a directory which contains several files. The target directory can be newly generated in the displayed directory tree.
3

Saving method


3. Saving method
DIN 4150-2 demands measurements in intervals of 30 seconds. The menu is locked therefore.
4

Record time signal


4. Record time signal

For a deeper analysis or for conservation of evidence VM-PERS can save the signal in time domain.
The following options are available for saving time signals
  •  never
  •  always
5

Save remarks


5. Save remarks
The measurement is monitored by VM-PERS.
For instance, it recognizes overload and underload. Such measurement remarks can be automatically taken over into the remark field, which is available for every measurement. The remarks are also taken over when a report is printed. Deselect this option if you do not wish to take over the remarks.
