PC Vibration Measurement System VibroMetra

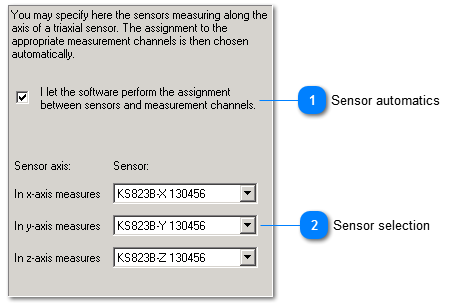

Sensor settings


Sensor settings
1

Sensor automatics


1. Sensor automatics

The measurements are carried out in three axes. The direction of the axes plays an important role. If you activate the automatic assignment of axes, VM-STRUC correctly assigns the sensor axes. It also shows the correct sensor positioning in graphical drawings. If you follow these graphical instructions you avoid positioning errors.
2

Sensor selection


2. Sensor selection
To work correctly, the sensor automatic requires assigned sensors. In the drop-down list, you can choose among all sensors from the sensor management.
