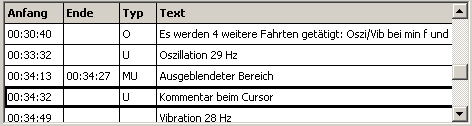

This control area shows all notes and masks in a table assorted by time.
![1](drex_bullet_1.png) Table
Additional to the time stamp of a note resp. the time range of a mask the table also shows the type of entry.
O
|
Original notes saved during measurement.
|
U
|
Unsaved notes or masks.
|
M
|
Mask
|
|
(Empty) Saved note that has been changed or entered during offline analysis.
|
|
|
![2](drex_bullet_2.png) Edit
|
Click this button to edit the text of the selected note/mask.
|
|
|
![3](drex_bullet_3.png) Jump to
|
Click this button to position the cursor at the position of the selected note/mask in the preview chart.
|
|
|
![4](drex_bullet_4.png) Save
|
This button saves changes or new notes/masks.
|
|
|
![5](drex_bullet_5.png) Delete
|
This button deletes the selected note/mask.
|
|
|
