PC Vibration Measurement System VibroMetra

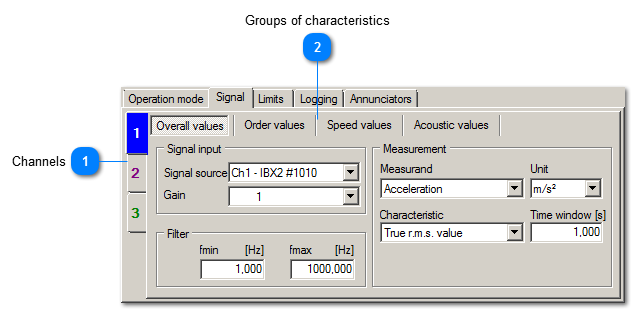

Signal

Signal
1

Channels


1. Channels
All settings can be entered independently for each channel. Different parameters, like vibration and frequency can be mixed in one diagram. The number of tabs depends on the number of active channels.
More settings are available when right-clicking on the channel. Thereby its color in the diagram can be adjusted (Change color) or its settings can be transferred to other channels (Copy settings to other channels).
2

Groups of characteristics


2. Groups of characteristics

The selectable characteristics are arranged in the following groups:

Vibration signals with high pass and low pass filtering and peak or RMS detection
Vibration signals with narrow-band filtering and peak or RMS detection
Signals from the digital inputs of the USB device.
Microphone signals with rating curves filtering and peak or RMS detection
