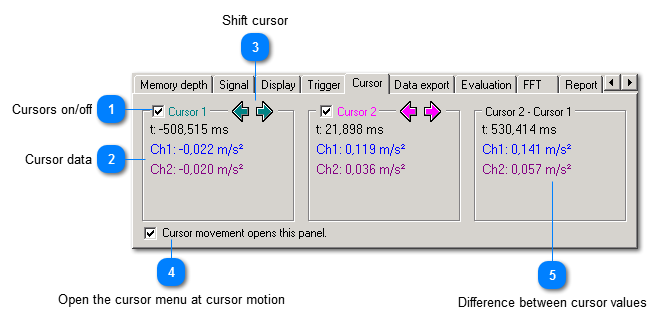

2 cursors can be activated and shifted. The measurement data of the selected position are displayed.
 Cursors on/off
|
|
 Cursor data
|
Cursor time position and measuring value for each trace at this moment.
|
|
|
 Shift cursor
|
Shift the cursor in the direction of the time axis. Shifting is also possible by dragging the cursor line directly.
|
|
|
 Open the cursor menu at cursor motion
When this option is selected the cursor tab will open automatically when the position of the cursor line is moved by the mouse.
|
|
Difference between cursor values
|
Shows the difference of magnitude and time between the two cursors.
|
|
|

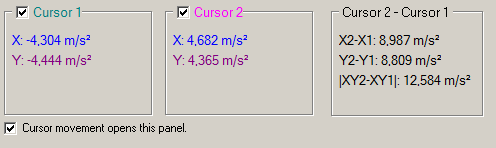

Orbit display
In the orbit display the respective x- and y-values are displayed instead of the data for channel 1 and channel 2. Additionally to the difference of the x- and y-values the difference of both cursors is displayed.
