PC Vibration Measurement System VibroMetra

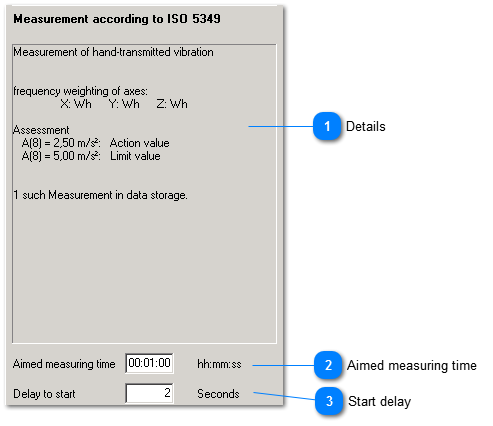

Configuration options for the measuring mode


Configuration options for the measuring mode
1

Details


1. Details
For greater certainty concerning the selected measurement mode, the following details are displayed:
  •  evaluation type
  •  weighting filters for the different axes
  •  evaluation zones
2

Aimed measuring time

2. Aimed measuring time
The measurement is usually carried out for a limited time. This duration can be entered here. A minimum of 1 minute is recommended.
3

Start delay

3. Start delay
If you do not want the measurement to start right after pushing the start button, you can enter a delay here.
