PC Vibration Measurement System VibroMetra

Display panel

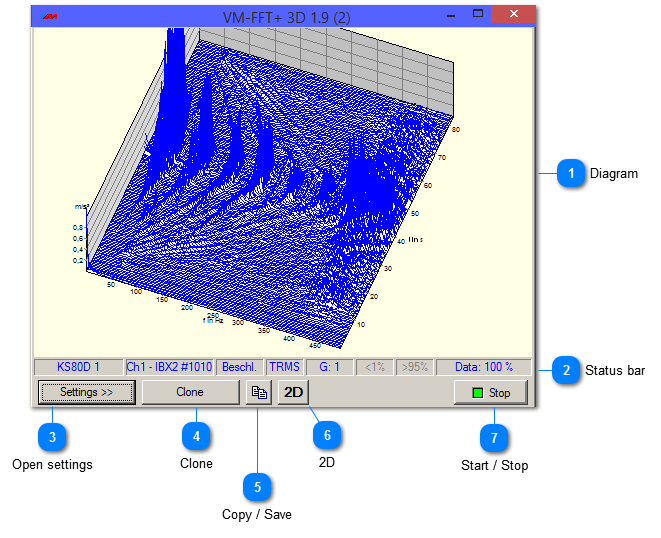

VM-FFT 3D shows in this compact, space-saving display the frequency analysis and all important status information.
Display panel
1

Diagram

1. Diagram

2

Status bar


2. Status bar
The status bar indicates the most important settings for the respective channel of the instrument:
3

Open settings


3. Open settings
Opens and closes closes the setup menu.
4

Clone


4. Clone
Opens a new window with the same settings which can be modified.
5

Copy / Save


5. Copy / Save
Copies the diagram data into the clipboard or saves it on hard disk. Different file
formats can be chosen.
6

2D


6. 2D
Switching to 2D display of frequency analysis. The FFT that shall be viewed in the frequency spectrum can be selected by the FFT cursor. In 2D mode many analysis options of the VM-FFT are available.
7

Start / Stop


7. Start / Stop
Starts and stops measurement.
