PC Vibration Measurement System VibroMetra

Instrument management


VibroMetra offers a variety of instruments, each for a certain purpose. Several instruments can be operated together.

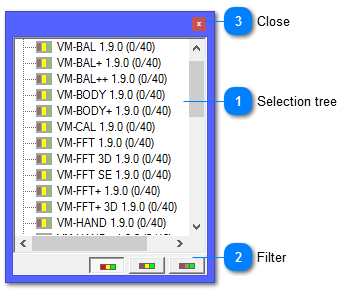

Instrument management
1

Selection tree


1. Selection tree
The selection tree lists up all available instruments. The traffic light on the left side of the instrument's name is an activity indicator:

  •  red:
This instrument has been installed, but there is no license for using it.
  •  yellow:
This instrument is ready for measuring, but it has not yet been started.
  •  green:
This instrument has been started.
Mouse operation
The number following the instrument indicates how much instrument windows are opened. One license allows the five-fold use of an instrument. With a single license, you can for instance open 5 VM-METER windows to display 5 different values simultaneously, e.g. vibration displacement, velocity, acceleration, rotation speed and main frequency.
2

Filter


2. Filter

You can restrict the list of instruments, e.g. to instruments which can be opened (yellow or green activity indicator).
3

Close


3. Close   This button closes the window.
